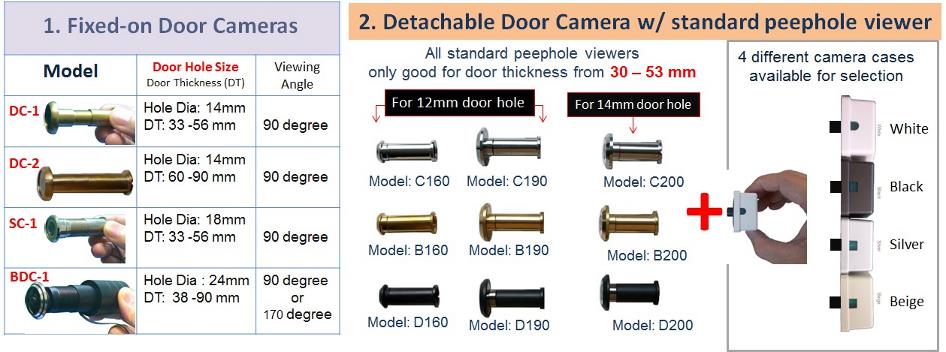

1. check your door hole size (door hole diameter)

2. check door thickness (if you have a thicker door)

3. selecting following models, and then click product list —>>

Important Note:

· a Fixed-on door Camera will give a better video quality compared to that of a Detachable Door Camera.

· Different from the Fixed-on door camera, the optical lens designed in a Detachable door camera requires 2 sets of optical lenses to make the detachable door camera removable.

· A narrow-viewing-angle camera gives a clear view compared to that of a wide-viewing-angle camera.  For example, a 90-degree camera has a clear view compared to a 140-degree viewing angle camera.

Check Viewing Angle

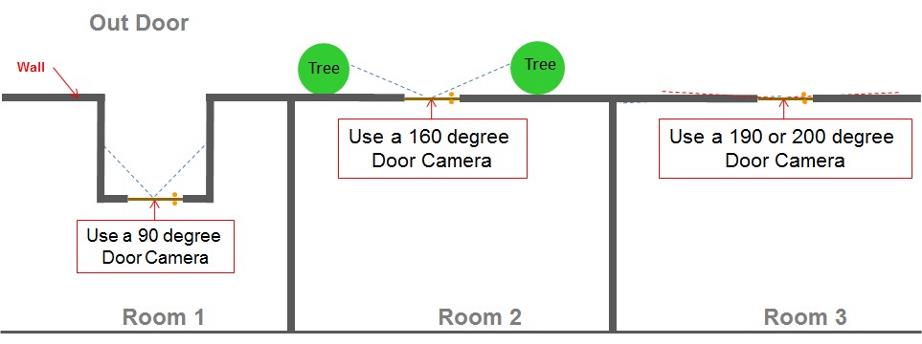

It is better to select a peephole door camera’s viewing angle based on your front door configuration.  Please refer to following recommended camera viewing angle for each room.

Please check if there is any tree, or pillar outside of your front door that blocking door camera’s viewing, and then select a door camera with a matched viewing angle.

We highly recommend you use a 90-degree viewing angle camera if you want to see a clear view of any objects distance away.  Because for a large viewing-angle camera that any objects inside the video will become very small.  Please check following photos for the test result of video image using cameras with different viewing angles.

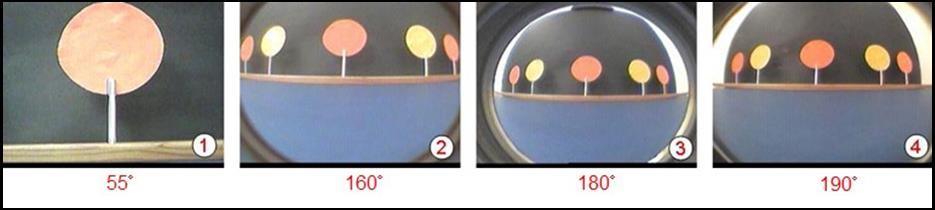

Video image captured from  1.) 55-degree viewing angle camera; 2.) 160-degree viewing angle door peephole camera; 3.) 180-degree viewing angle door peephole camera;  1.) 190-degree viewing angle door peephole camera;

Window Camera

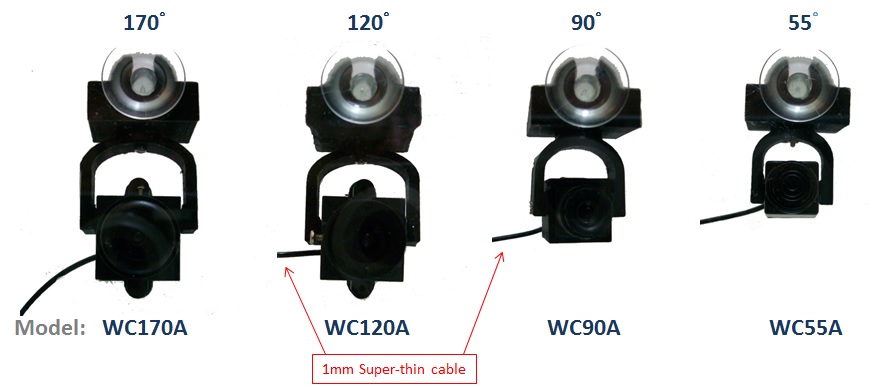

 Mini suction-cup Window Camera with 4 different viewing angles

Note:  We will have 3M Command strip Window Camera version coming soon!

How to name a detachable door camera’s model #?

please click here for information

Hole Dia:: 14mm

DT: 33 –56 mm

Long tube versions are also available

90  degree

         or

140 degree
