Some wiring diagram examples for your home door camera surveillance system



Note: Below wiring diagrams are only few examples for the door camera system configurations.  We can help customers to make the front door camera system to fit into their central surveillance systems using wired or wireless signal transmission.

In case you have your own system configuration ready and like to add the front door camera fits into your system, please feel free to email us, we should able to make it for you.

Connecting to compatible accessory

· LCD monitor

· DVR or NVR

· USB Converter

· AV2IP Converter

· AV to HDMI or SDI Converter

· WiFi Transceiver



Click here to view available accessory

Copyright @ 2024

Connecting to compatible accessory

· LCD monitor

· DVR or NVR

· USB Converter

· AV2IP Converter

· AV to HDMI or SDI Converter

· WiFi Transceiver



Click here to view available accessory

Connecting to compatible accessory

· LCD monitor

· DVR or NVR

· USB Converter

· AV2IP Converter

· AV to HDMI or SDI Converter

· WiFi Transceiver

Click here to view available accessory

文字方塊: Check here for
system configurations
after implementing compatible accessory items.

Web sites:

· www.iat101.com

· www.peephole-store.com

· www.ezdiystream.com

· www.ezdiybroadcast.com

eMail:

· iat101.order@gmail.com (preferred)

· ia-tecs@hotmail.com

· shop@iat101.com

eBay Stores:

· eBay (USA): iat101

· eBay (Canada): ia-tecs

Our door camera solutions will work for all countries worldwide!

I. Conventional basic kit



Items included in the basic kit system:

1.) door camera unit that fits your front door (with 50cm ITC* pigtail cable).   ITC*: incredible-thin cable

2.) 7.5 meters (~ 25ft) long UTC* cable. UTC* : ultra-thin cable

3.) Power/ Video splitter with BNC connector

4.) BNC to RCA (Female) connector

5.) Power adapter

6.) Mini cable clip set

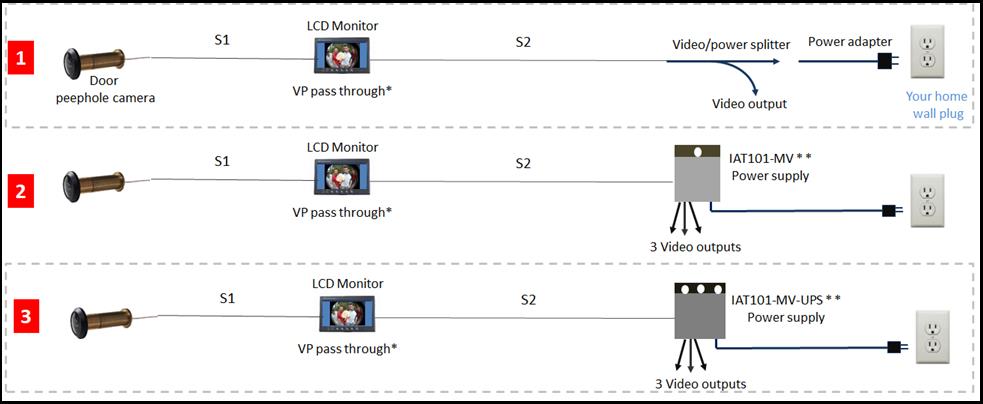

II. Single-power camera + monitor kit ver.1    (SPCM1)

NOTE:  Both door camera and the 7” LCD monitor are powered by one single power source.

With this video/power (VP) pass-through monitor, you only need one single wall plug for powering the system.



Items included in the SPCM1 kit

1.) door camera unit that fits your front door (with 50cm ITC* pigtail cable).   ITC*: incredible-thin cable

2.) 5.5 meters (~ 18ft) long UTC* cable. UTC* : ultra-thin cable

3.) video /power (VP) pass-through monitor 7” LCD

4.) 7.5 meters (~ 25ft) long UTC* cable. UTC* : ultra-thin cable

5.) Power/ Video splitter with BNC connector

6.) Power adapter

7.) BNC to RCA (Female) connector

8.) Mini cable clip set



III. Single-power camera + monitor kit ver.2    (SPCM2)

NOTE:  Both door camera and the VP pass-through 7” LCD monitor are powered by one single power source.

The 7” LCD monitor has an additional plug port for connecting to a WiFi or a 5.8GHz RF transmitter for wireless transmission.



Items included in the SPCM2 system:

1.) door camera unit that fits your front door (with 50cm ITC* pigtail cable).   ITC*: incredible-thin cable

2.) 5.5 meters (~ 18ft) long UTC* cable. UTC* : ultra-thin cable

3.0) video /power (VP) pass-through monitor 7” LCD with an additional plug port for connecting to a wireless transmitter

3.1) a mini wireless 2.4GHz WiFi or a 5.8GHz RF transmitter module

4.) regular power cable

5.) Power adapter

6.) Mini cable clip set

IV. Single-power camera + monitor kit ver.3    (SPCM3)

NOTE:  Both door camera and the VP pass-through 7” LCD monitor are powered by one single power source.

The power supply has 3 video output ports



Items included in the SPCM3 system:

1.) a door camera unit that fits your front door (with 50cm ITC* pigtail cable).   ITC*: incredible-thin cable

2.) 5.5 meters (~ 18ft) long UTC* cable. UTC* : ultra-thin cable

3.) video /power (VP) pass-through monitor 7” LCD

4.) 7.5 meters (~ 25ft) long UTC* cable. UTC* : ultra-thin cable

5.) Power supply with 3 video output ports  (multiple-video-output power supply)

6.) Mini cable clip set



Note:

For the multiple-video-output power supply, we have 2 models for selection.

1.) model 1: MV**: multiple video output power supply

2.) model 2: MV-UPS**:  multiple video output power supply with 5400mAh built-in battery





Why we develop the SPCM ( Single-power door camera + monitor) systems ?



1.) For the 7” monitor, with the VP (video/ power) pass through capability, there is no additional power and video plugs required for the monitor.  The monitor can be just connected with the ultra-thin cable for video viewing.  The VP pass-through monitor can be placed at the inner side of the house, you don’t need to walk to door for knowing who is ringing your door bell.  This can prevent you got a random gun shooting next to  the front door after someone ring the door bell.



2.) For the multiple-video-output power supply, with the 3 video outputs, you can connect the video outputs to various surveillance equipment (accessory) for viewing / recording simultaneously.  It is good when one of the surveillance device not functional, you still have other device working.



3.) For system 3 . with the IAT101-MV-UPS ** Power supply allowing the door camera and LCD monitor keep working for few hours when your home power is totally shutdown, so you can still see what is happening outside of your front door when your house has no electricity.



NOTE:



1.) Because the diversity of our door camera / window camera surveillance solutions, we can help you to custom design a system matching your requirements without adding any hidden design fee.



2.) Door camera with USB connections are not listed in this web page.  Please click here for the USB system.



3.) We will also add additional products such as the POE (power over Ethernet) door camera solutions.
